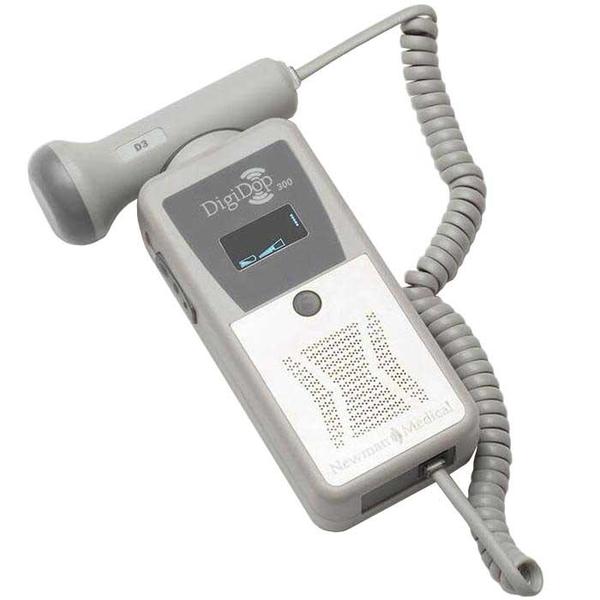

Newman Medical DigiDop 300

*All probes are interchangeable.

Obstetrical Probes:

D2 - 2MHz Probe The 2 MHz obstetrical probe is optimized for deep penetration. Best for use on larger patients late term pregnancy.

D2W - 2MHz Waterproof Probe The 2MHz waterproof obstetrical probe is made for use during late term pregnancy in water applications.

D3 - 3MHz Probe The 3 MHz obstetrical probe is optimized for early fetal heart detection and designed for use during the entire pregnancy It is the best general purpose obstetrical probe.

D3W - 3MHz Waterproof Probe The 3 MHz waterproof obstetrical probe is optimized for early fetal heart detection and for use during the entire pregnancy in water applications.

Vascular Probes:

D5 - 5MHz Probe The 5 MHz vascular probe is designed to ease location of deeper vessels. The medium width beam and pencil-style shape provides optimum sensitivity and ease of use.

D8 - 8MHz Probe The 8 MHz vascular probe is designed to ease location of surface vessels. The narrow beam and pencil-style shape provides optimum sensitivity and ease of use (It is the best general purpose vascular probe).

PPG - PPG Vascular Probe The PPG is a photo-plethysmography probe that uses infrared light sensing to detect blood flow. Varying levels of flow produce an audio signal that corresponds to blood flow. It is useful for detecting flow in the digits.

Newman Medical knows that the real key to a great Doppler is performance - sensitivity and sound quality. Therefore, the best part of the new DigiDop is inside - we use digital signal processing similar to high-end audio equipment to reduce unwanted background noise and let the doppler sounds through bright and clear.

We Call it DOP - Digitally Optimized Processing. To get technical, unlike older Dopplers of our competition, we can change the filters in the main unit to optimize the sound of each probe. In addition, DOP also lets us use noise reduction technology and powerful autocorrelation techniques to calculate the heartrate.

The DigiDop 300 is a top-quality hand-held Doppler which features superior sound quality, interchangeable probes and a one-year full warranty.

Dimensions (h w l): 6 x 2.5 x 1.25 inches; 15 x 6.5 x 3.5 cm

Weight: 12.7 ounces; 360 grams

Battery life: 900 1-minute exams

Heart rate calculation accuracy: +/-3 BPM over range 50 to 220 BPM

Audio cable pin out: 3.5 mm plug

Lease-to-Own Agreement: In renting the Doppler, customer is agreeing to abide by all terms stated in the rental agreement.

Billing: Every rental will be billed the day the unit is shipped out. And each month following until the final payment is made.

*The purchase price is not discounted when the unit is rent-to-own. For discounts to apply, the unit must be purchased upfront.
